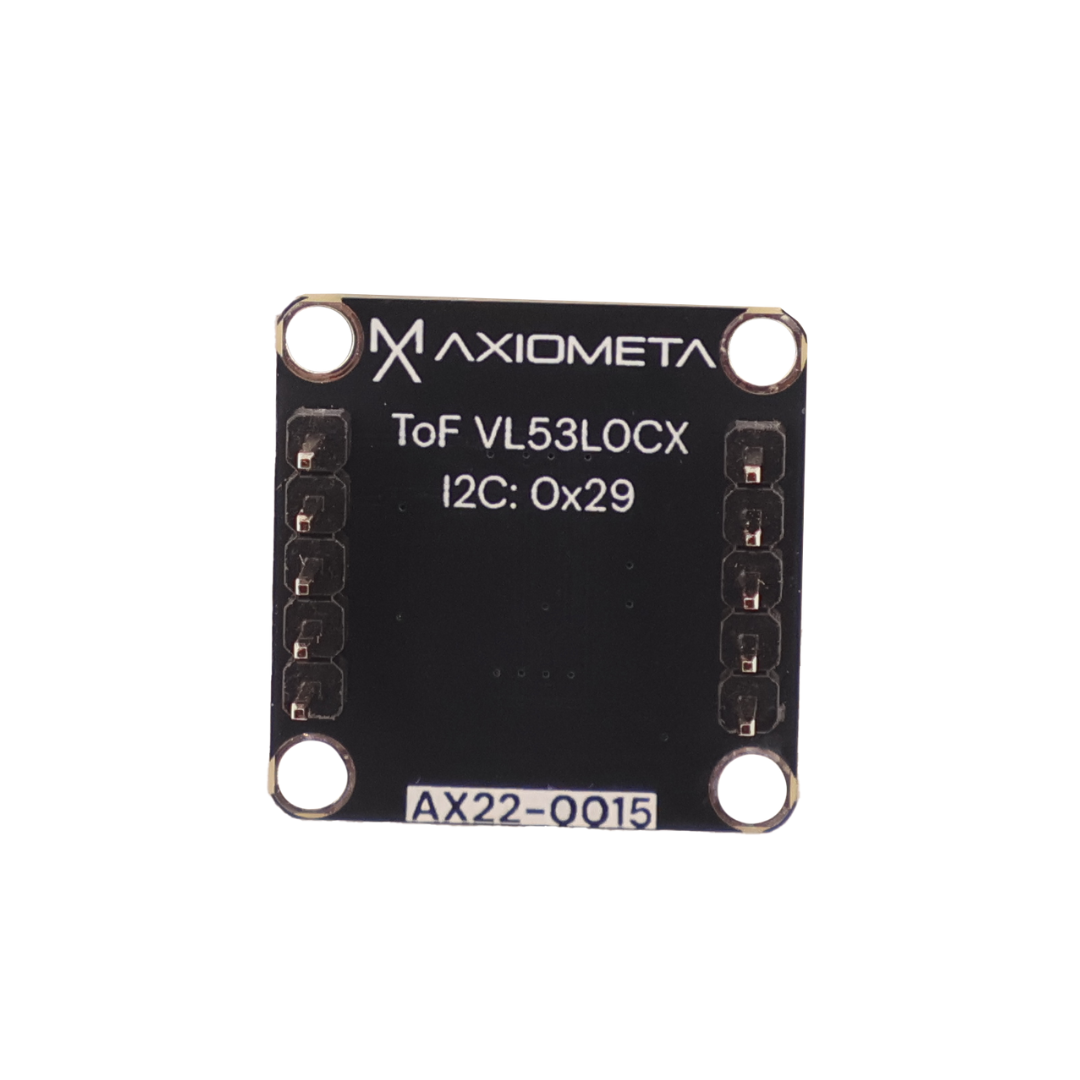

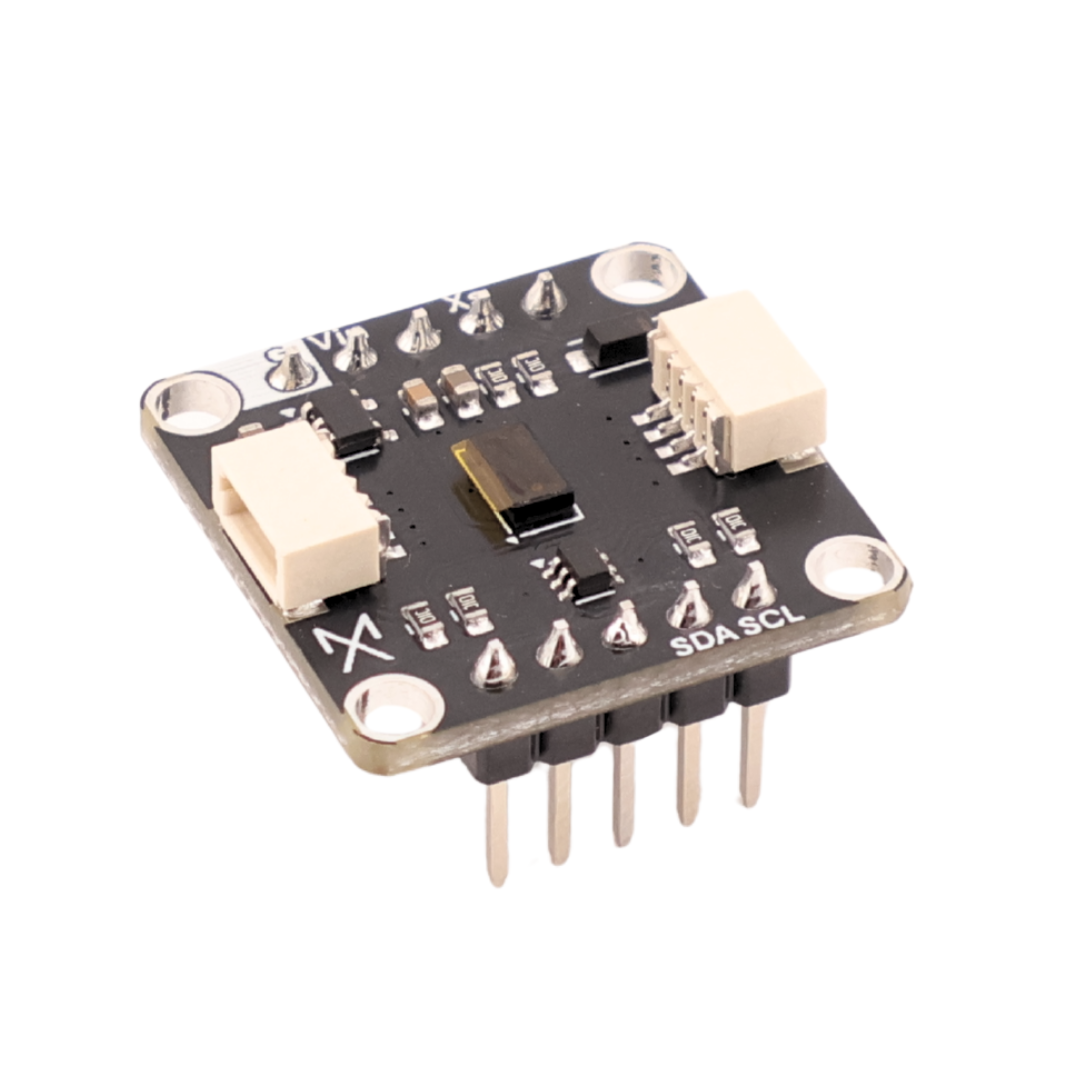

Laser Distance Sensor (VL53L0CX)

⏳ This item is currently sold out — a new batch is on its way and will be available soon!

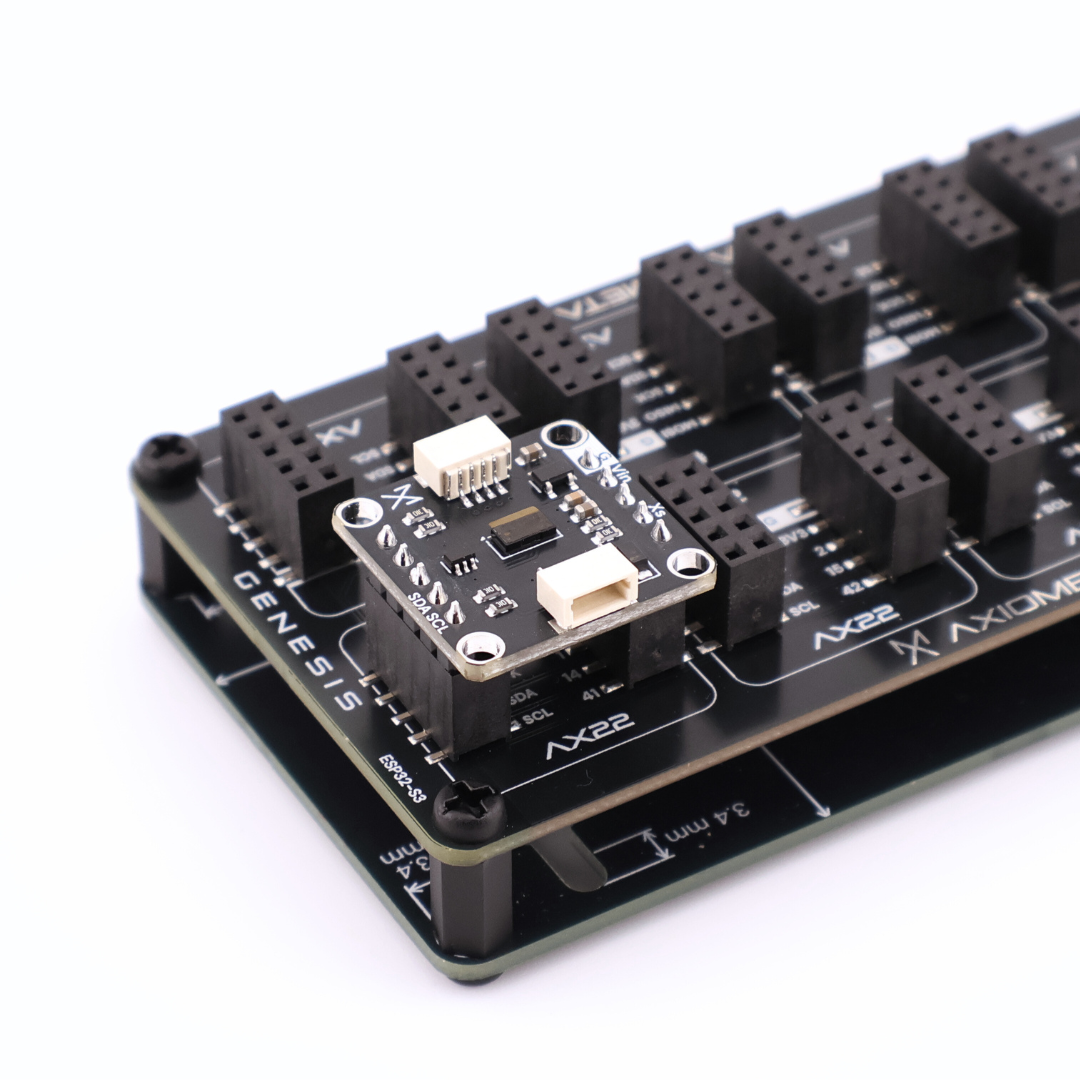

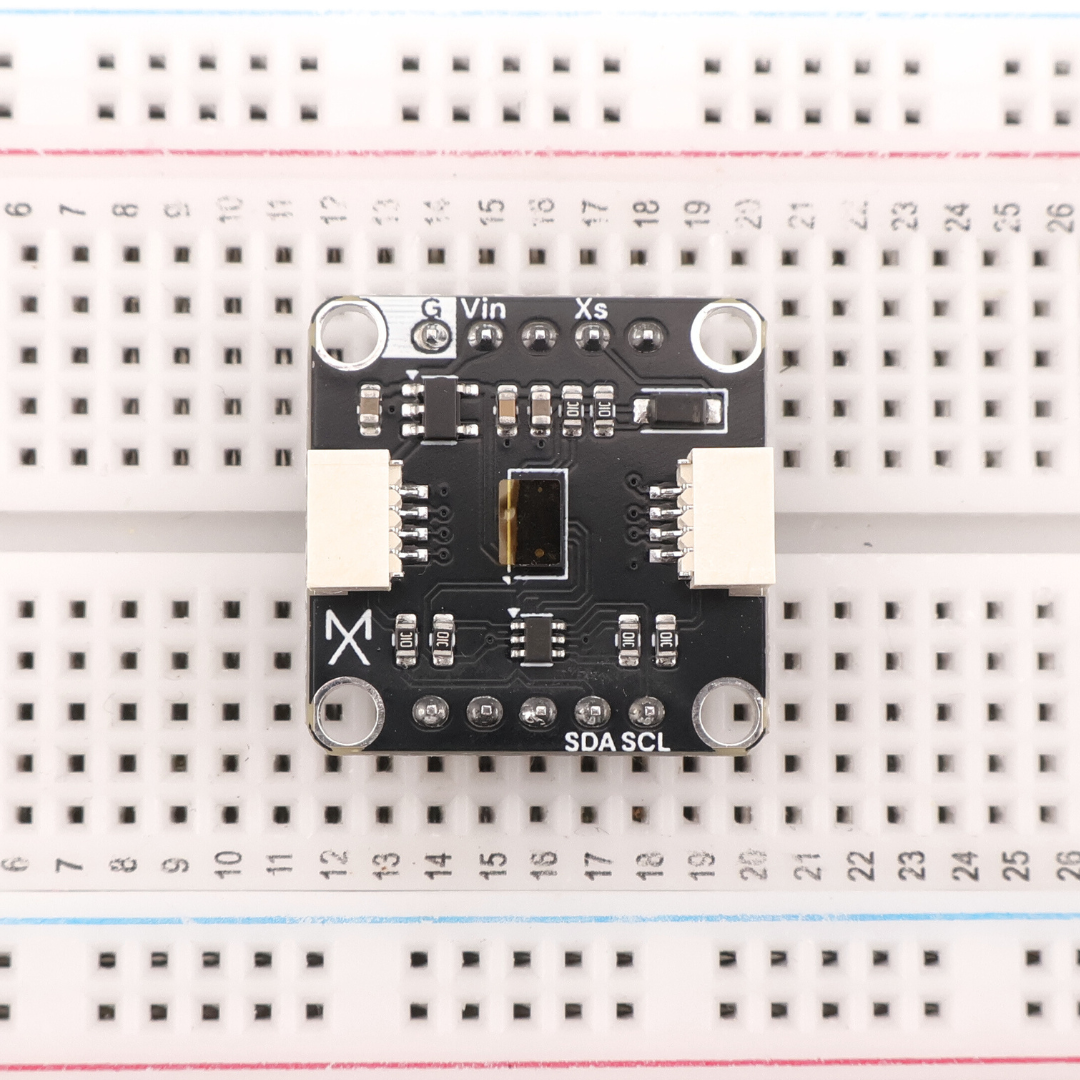

This board places ST’s VL53L0CX laser Time-of-Flight sensor on a compact 22 × 22 mm PCB, giving your project millimetre-accurate, eye-safe distance readings over I²C. An onboard regulator and bidirectional level shifters let any 1.8 V, 3.3 V, or 5 V microcontroller talk to the sensor hassle-free, while the factory-calibrated SPAD array measures absolute ranges out to 4 m in under 30 ms. Drop it into any backplane to add precise proximity sensing, gesture recognition, or collision avoidance to robots, smart interfaces, or interactive art with just a few library calls in Arduino, MicroPython, or MicroBlocks. Use it standalone with any microcontroller, or snap it into the Genesis Modular system from Axiometa for plug-and-play integration. Works with Arduino IDE, MicroPython, or MicroBlocks.

- 22 mm × 22 mm Board
- 4× ⌀2.7 mm Mounting Holes
- ST VL53L0CX Time-of-Flight Sensor
- Millimetre-Accurate Ranging
- Eye-Safe Class 1 Laser
- I²C Interface
- 1.8 V, 3.3 V, 5.0 V Compatible
- Arduino IDE Compatible
- MicroPython Compatible
- MicroBlocks Compatible

Material Datasheet
Circuit Schematic
3D Model (STEP)
Pinout Diagram
